Products and Services
Diameter ranges from 90mm to 400mm.
Pile diameters range from 300 mm to 4.0 m.
Pile lengths to a depth of 90m.
Rig weights range from 11t to 180t.
Cased CFA PilesPile diameters range from 750mm ID to 880 ID m. Piling Lengths range to 18.00 m. Rig weights range from to 120t.
Continuous Flight Auger Piles
Pile diameters range from 300mm to 1.2 m.
Piling Lengths range to 36 m.
Rig weights range from 11t to 160t.
Cutter Soil Mixing
Trench thickness can range from 640mm to 1200mm.
Minimum panel length of 2.8m.
Trench depth can range up to 43m.
Rig weight may range from 130t to 170t.
Trench thickness from 600mm to 1500mm by 2800mm long.
Trench depth up to 75 metres using 150 tonne to 170 tonne rig working capacity
Down the Hole Hammer Drilling
DTHH size range from 90mm to 750mm full face button bits.
Drilled Displacement Piles
Diameters range from 300mm to 610mm.
Rig weights from 50 to 160 tonnes.
Depths up to 32 metres.
Depth - depending ground conditions.
Hydraulic and Air powered Impact Hammers ranging from .6 tonne to 14 tonne (ram block weight).
Hydraulic Vibratory Hammers from 5 tonne to 12 tonne.
Diameters range from 600mm to 2500mm.
Pile Integrity Testing using TDR2.
Tension tests using 350 tonne hydraulic jacks.
Pile Dynamic Testing using 7, 9, 14 to 25 tonnes.
Inclinometer Testing using MEMS Inclinometer apparatus.Crosshole Sonic Log and Thermal Integrity Profiler using PDI Data Analyzer.
Secant Pile Walls
Using CFA – Diameters from 450mm to 1200mm.
Using Bored Piles with segmental casing- Diameters from 450mm to 1500mm.
Using Turbo Jet - Diameters from 600mm to 1200mm.

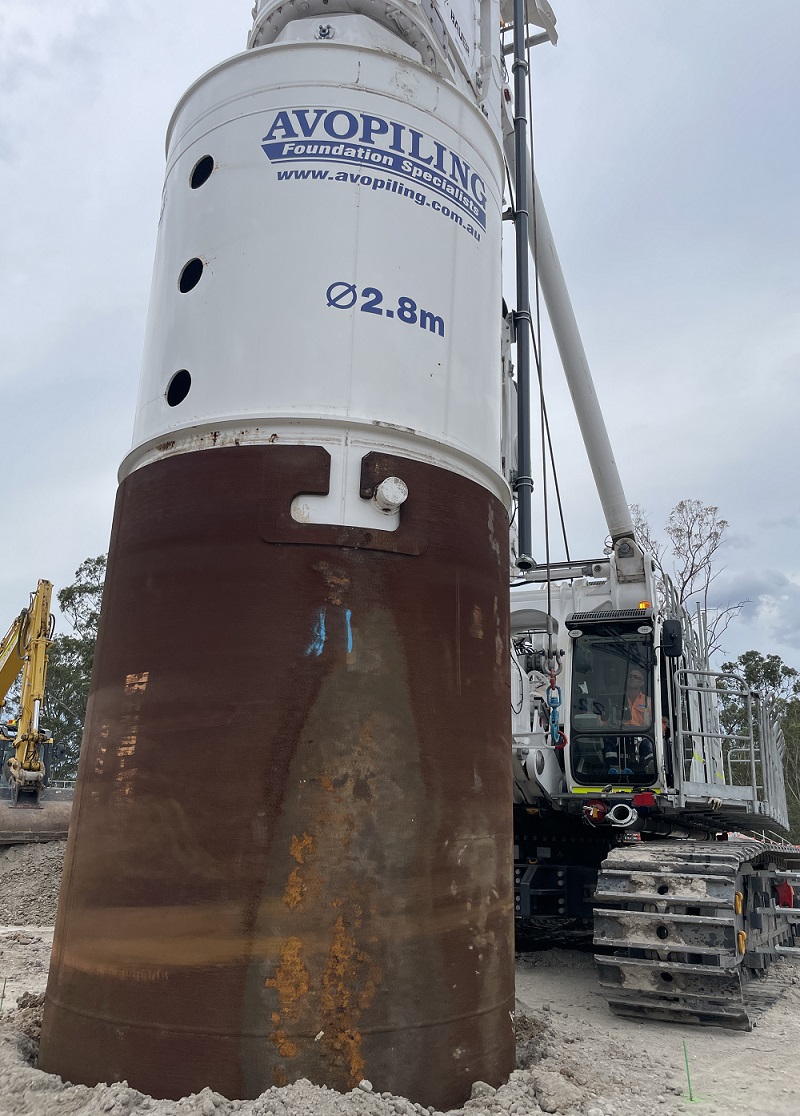

Segmental casing diameters – 620mm OD to 2000mm OD.
Shaft Drilling / Bulk Sampling
Avopiling has the capapcity to drill large diameter shafts to depths of 90m.

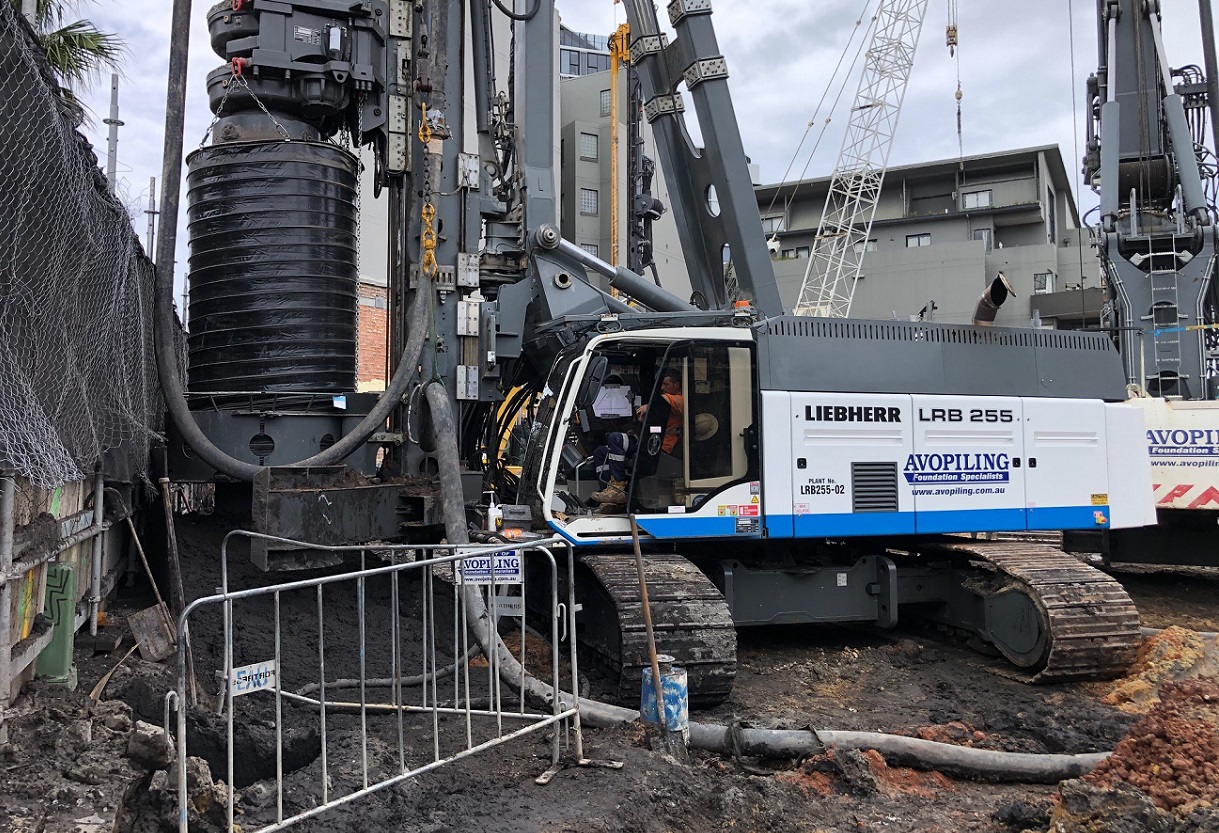

Using vibratory hammers ICE 14RF, 416 and PVE 40VML that is adaptable to the LRB255 pile driving rig and is also capable of driving double AZ, PU and GU profile sheets.
Specialist Sub-Structure Packages
Underground Investigation Services, Surveying, bore hole investigation, Pile trimming i.e. jack hammering or Quicutter debonding foam, Pile cap steel fixing, concreting, curing and thermal monitoring.
Diameters range from 600mm to 1200mm.
Depth to 20m.
