1 The Esplanade, Elizabeth Quay Lot 7

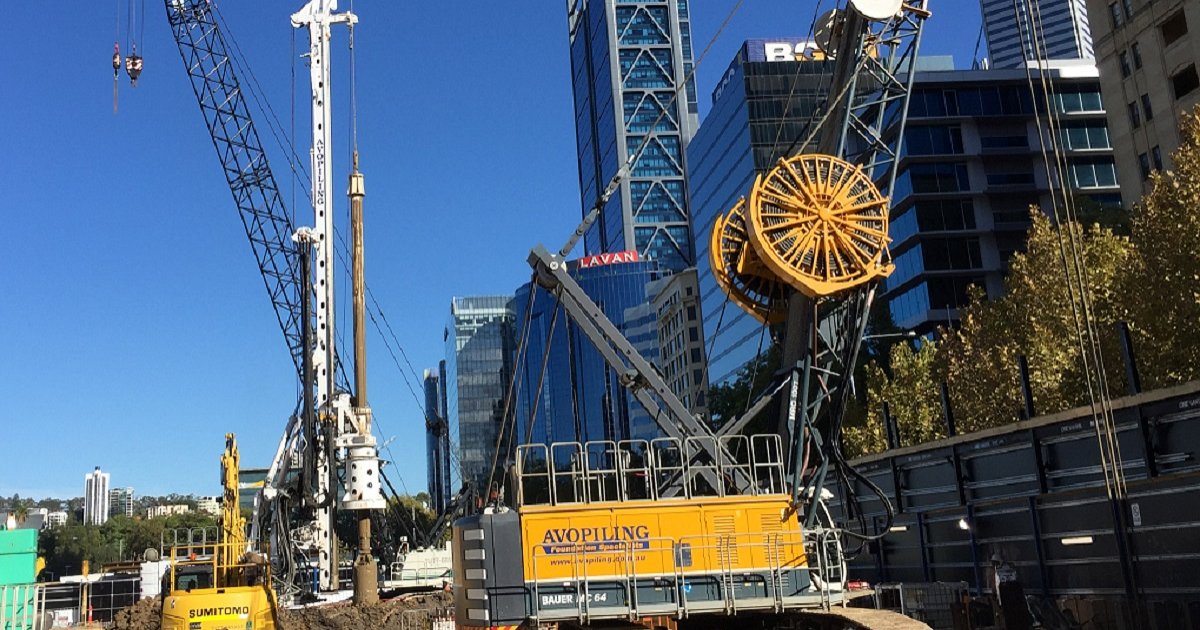

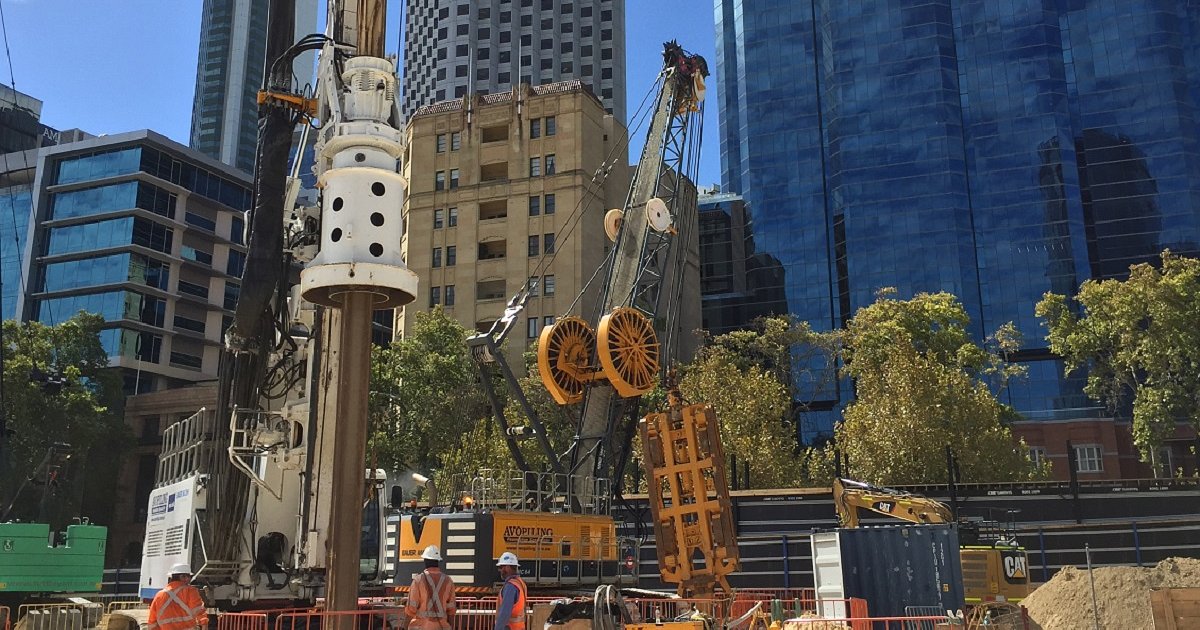

BG28H and MC64

Project Outline

Products / Services

The project is a 29 storey building with two level basements and 3 level podium to be developed by Brookfield and constructed by Multiplex.

Scope of Works

Multiplex Construction Company awarded to Avopiling WA Pty Ltd the construction of bored foundation piles, 600mm wide tower core barrettes x 19.00m in depth and 600mm wide x 19.00m to 32.00 meters deep diaphragm walls. The bored foundation consist of 66No 900mmØ x 28.00m to 39.00m deep bored piles, 15No 1050mmØ x 34.00m to 39m deep bored piles x , 7No 1500mmØ x 35.00m to 50.00m deep bored piles, 6No 1800mmØ x 42.00m to 45.00m

The total excavation area for the diaphragm wall is 5222 square meters, barrettes is 219 square meters and core wall is 3630 square meters
